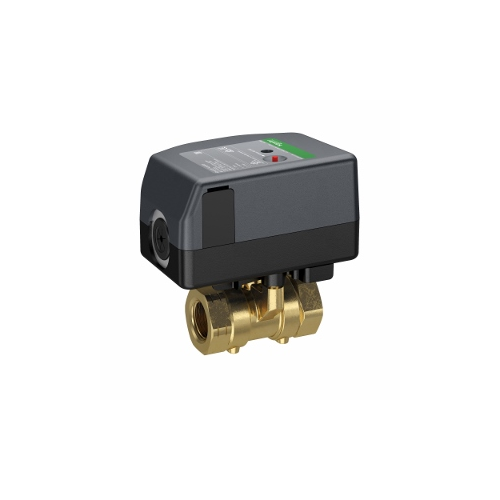

Schneider Electric VBS2N07+M332A01 SpaceLogic Ball Valve Assembly 1/2 2-Way Stainless Trim

Product Description

Schneider Electric VBS2N07+M332A01 is a ball valve assembly designed for efficient fluid control in HVAC applications. This 2-way valve operates using a rotary actuator and is capable of handling pressures up to 130 psi. It features stainless trim for durability and a close-off rating of 10 Cv. The assembly includes a ten-foot plenum cable, ensuring ease of installation and connectivity.

• Automatic reset control type.
• Body made of forged brass.
• IP11 protection rating for environmental safety.

Product Highlights

This valve assembly is suitable for automatic control applications and is built to withstand operational temperatures ranging from minus seven to one hundred twenty-one degrees Celsius. The compact design makes it ideal for space-constrained setups.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Actuator: Rotary
• Control Type: Automatic reset
• Body Material: Forged brass
• Power Consumption: 2.4 VA AC
• Operating Temperature: -7 to 121 °C
• Ambient Temperature for Operation: 0 to 60 °C
• Relative Humidity: 5-95% non-condensing
• Valve Connection Size: 1/2 inches
