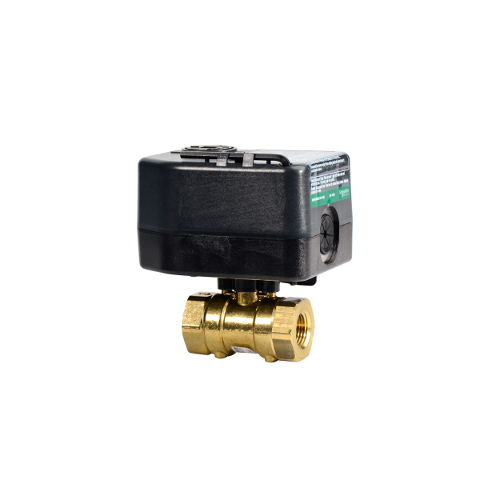

Schneider Electric VBS2N06+M220A01 Ball Valve Assembly 1/2 In 2-Way Replacement MPN

Product Description

Schneider Electric VBS2N06+M220A01 is a ball valve assembly designed for effective flow control. This assembly has a body size of one-half inch and operates as a two-way valve. It features stainless steel trim for durability and a flow coefficient of 7.7. The assembly is suitable for a close-off pressure of 130 psi and is powered by 24 VAC. The actuator has a spring return to the closed position and is equipped with a ten-foot plenum cable.

• Body material: Forged brass
• Actuator type: Electric with rotary movement
• Control signal: 2-position (on/off)

Product Highlights

This ball valve assembly is ideal for HVAC and plumbing applications where precise control of fluid flow is needed.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Power Input Voltage: 24 VAC
• Flow Coefficient: 7.7 Cv
• Close-Off Pressure: 130 psi
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: 0 to 76.1 °C
• NEMA Protection Rating: NEMA 2
• Electrical Insulation Class: NEMA 2
• Relative Humidity: 5-95 % non-condensing
