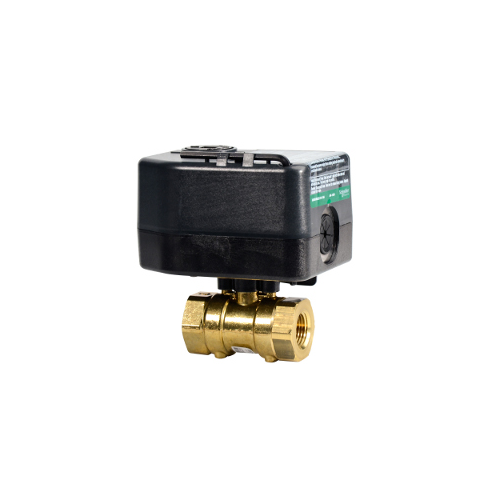

Schneider Electric VBS2N04+M210A01 Ball Valve Assembly 2-Way 24 VAC

Product Description

The Schneider Electric VBS2N04+M210A01 is a two-way ball valve assembly designed specifically for HVAC applications. This valve operates on 24 VAC power and features a spring return open actuator. The valve body is made from forged brass, ensuring durability and performance in various conditions.

• Body Size: 1/2 inch
• Flow Coefficient: 3.5 cv
• Close-Off Pressure: 130 psi

Product Highlights

This valve assembly is suitable for a variety of control applications and is equipped with a rotary actuator for reliable operation.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Forged brass
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 2
• Power Input Voltage: 24 VAC
• Ambient Air Temperature for Operation: 0-76.1 °C
• Ambient Air Temperature for Storage: -40-76 °C
• Relative Humidity: 5-95 % non-condensing
