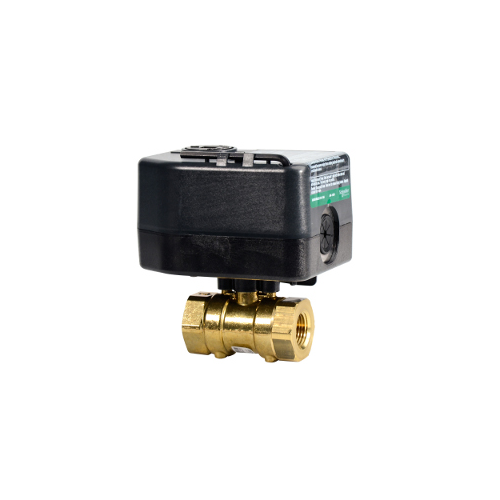

Schneider Electric VBS2N02+M210A00 SpaceLogic Ball Valve Assembly 24 VAC

Product Description

The Schneider Electric VBS2N02+M210A00 is a space logic ball valve assembly designed for effective fluid control. This valve features a half-inch body size and operates in a two-way configuration, using a stainless-steel trim for durability. It is rated for a maximum close-off pressure of 130 PSI and provides a flow coefficient of 1.2 Cv, making it suitable for a wide range of applications requiring precise control.

• Body Size: 1/2 inch
• Operating Voltage: 24 VAC
• Actuator Type: Electric with Spring Return

Product Highlights

This valve assembly is ideal for HVAC and plumbing systems requiring reliable performance under various conditions. The actuator type is electric for seamless operation, featuring a normally open position when powered off.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Forged Brass
• Flow Coefficient: 1.2 Cv
• Close-Off Pressure: 130 PSI
• Power Input Voltage: 24 VAC
• Control Signal: 2-Position (On/Off)
• Ambient Air Temperature for Operation: 0-76.1 °C
• Weight: 1.26 kg
• Protection Rating: NEMA 2
