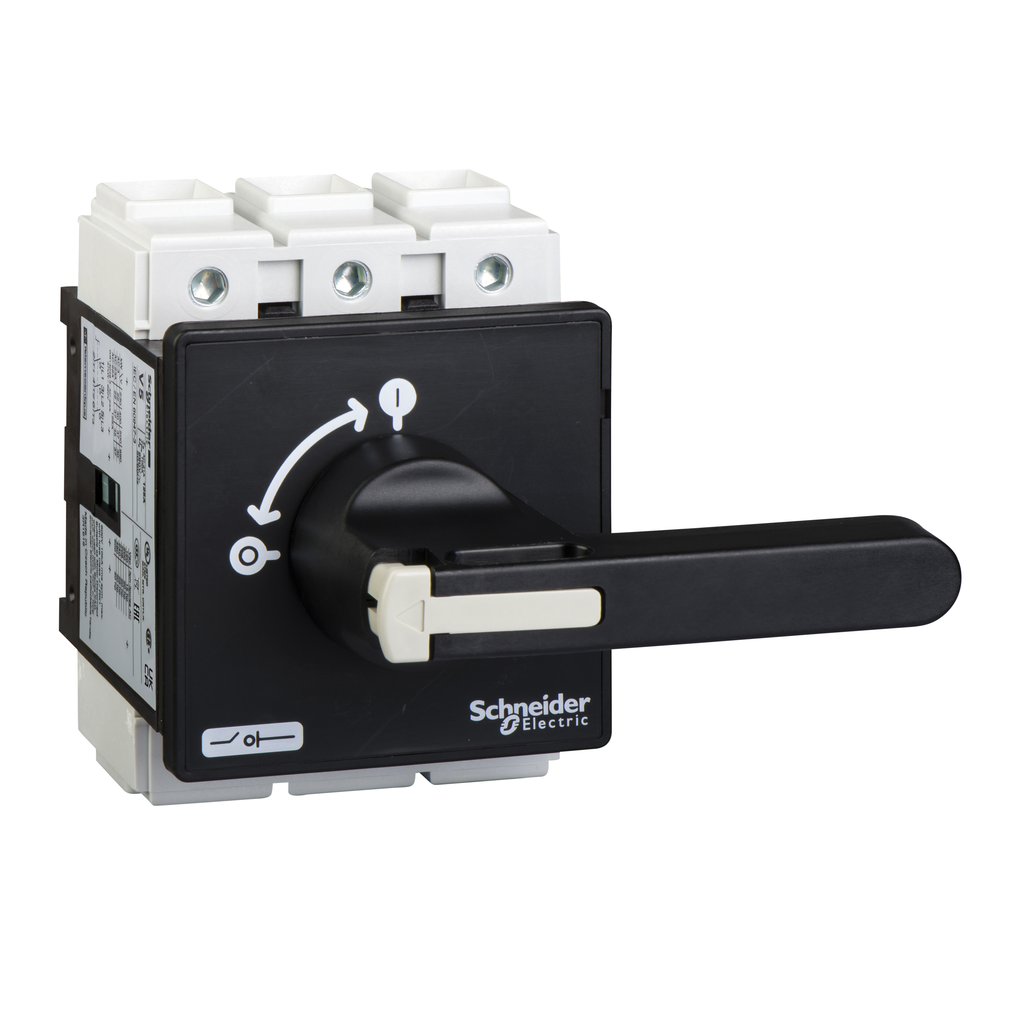

Schneider Electric VBF6 Switch Disconnector 115A 3P 3NO Emergency Stop

Product Description

The Schneider Electric VBF6 is a 115A switch disconnector with 3 poles and a 3 NO contact configuration. It offers a reliable emergency stop feature for motor applications, designed for door mounting using 4 screws. This product ensures IP65 protection and is essential for safe power disconnection in industrial and commercial settings.

• Reliable emergency stop functionality
• IP65 protection for secure installation
• Suitable for motor applications

Product Highlights

The VBF6 switch disconnector by Schneider Electric is an essential safety device for motor control and preventive maintenance. Its robust design and high-performance ratings ensure safe and reliable operation in various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VBF6
• Manufacturer: Square D / Schneider
• Country of Origin: Czech Republic

Technical Specifications

• Voltage: 690V AC
• Amperage: 115A
• Enclosure: IP65
• Actuator: Rotary handle, Black
• Number of Poles: 3
• Contact Configuration: 3 NO
• Width: 90 mm
• Height: 125 mm
• Weight: 2.65 lb
• Applications: Preventive maintenance
• Certifications: IEC, UL, CSA, CCC, UKCA, Marine
• Environmental Conditions: OPEN
• RoHS Compliance: Yes
• Operating Temperature: -40 to 122 degrees F (-40 to 50 degrees C)
