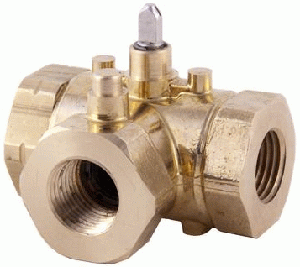

Schneider Electric VBB3N16 SpaceLogic Ball Valve 3/4 3-Way Replacement MPN

Product Description

Schneider Electric VBB3N16 is a ball valve designed for reliable operation in fluid control systems. This valve features a three-way mixing configuration and is ideal for various applications involving water and glycol media. The body size is three-quarters of an inch, and it is constructed with forged brass material for durability. The flow coefficient is rated at 7.3 Cv, suitable for effective flow management.

• Body Size: 3/4 inch
• Material Trim: Brass
• Control Media: Glycol and Water

Product Highlights

This valve is not for use with steam and is designed for North American regions, meeting various industrial standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: VBB3N16
• Configuration: 3-Way Mixing
• Connection Type: NPT
• Operating Fluid Temperature: -7 to 121 °C
• Seat Leakage: Class IV (0.01 %)
• Flow Coefficient: 7.3 Cv
• Product Line: SpaceLogic
• Product Series: VBB3
