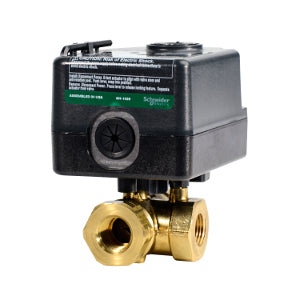

Schneider Electric VBB3N16+M220A11 Ball Valve Assembly 3/4 3-Way Replacement MPN

Product Description

The Schneider Electric VBB3N16+M220A11 is a reliable ball valve assembly designed for efficient fluid control. With a body size of three-quarters inches and a three-way mixing configuration, it is suitable for various HVAC and plumbing applications.

• Flow Coefficient: 7.3 Cv
• Close-Off Pressure: 70 PSI
• Power Input Voltage: 120 to 277 VAC

Product Highlights

This product features an electric actuator with a two-position control signal for reliable operation. It has a spring return feature to ensure the valve closes when power loss occurs.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Body: VBB3N16
• Actuator: M220A11
• Material Trim: Brass
• Control Signal: 2-Position (On/Off)
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: 0-76.1 °C
• Relative Humidity: 5-95 % non-condensing
• Loss of Power Position: Normally closed
