Schneider Electric VBB3N15 SpaceLogic Ball Valve 3/4 3-Way Replacement MPN

Product Description

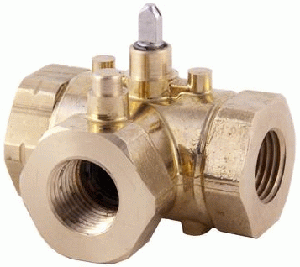

The Schneider Electric VBB3N15 is a three-way ball valve designed for various applications. This valve features a three-quarter inch body size and a robust brass trim. It operates effectively at a flow coefficient of 4.5 cv and can handle close-off pressures up to seventy psi. The valve is suitable for controlling fluids such as glycol and water, making it fit for many HVAC systems.

• Body Size: 3/4 inches
• Configuration: 3-Way Mixing
• Connection Type: NPT

Product Highlights

This valve is ideal for use in heating and cooling applications where mixing of fluids is required. It has a durable construction and is easy to operate, ensuring reliable performance in various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SpaceLogic
• Country of Origin: US
• Manufacturer: Schneider Electric
• Operating Fluid Temperature: -7-121 °C

Technical Specifications

• Flow Coefficient: 4.5 cv
• Close-Off Pressure: 70 psi
• Material Trim: Brass
• Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Glycol 60%, Water
• Product Series: VBB3
• Seat Leakage: Port A: Class IV (0.01 %)
• Valve Type: Ball
• Valve Configuration: 3-Way Mixing
