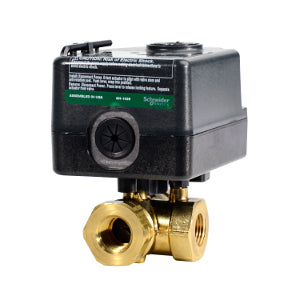

Schneider Electric VBB3N12+M210A00 SpaceLogic Ball Valve Assembly 3/4 3-Way Replacement MPN

Product Description

The Schneider Electric VBB3N12+M210A00 is a 3/4 inch ball valve assembly designed for fluid control in various applications. It features a brass trim and operates with a 24 VAC actuator, suitable for HVAC systems and industrial uses. This valve is built to provide efficient mixing and flow control with a close-off pressure of seventy PSI.

• Brass construction for durability
• 2-position spring return actuator
• Suitable for various HVAC and plumbing systems

Product Highlights

This product is ideal for automatic fluid control in systems requiring precise regulation of flow.

Product Information

Standard Information

• Body Size: 3/4 inch
• Body Material: Forged brass

Technical Specifications

• Type: Ball Valve Assembly
• Flow Coefficient: 1.0 Cv
• Close-Off Pressure: 70 psi
• Power Supply: 24 VAC
• Temperature Range: -7 to 121 °C
• Electrical Insulation Class: NEMA 2
• Relative Humidity: 5 to 95 % non-condensing
• Motor Type: Split capacitor synchronous motor
