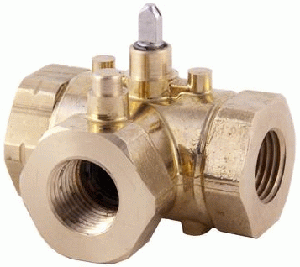

Schneider Electric VBB3N12 Ball Valve 3/4 3-Way Brass Trim Replacement MPN

Product Description

The Schneider Electric VBB3N12 is a three-way ball valve designed for efficient flow control. It has a three-quarter inch body size and features a brass trim. This valve is suitable for a variety of fluids including glycol and water, making it versatile for HVAC systems.

• Body Size: 3/4 inch
• Configuration: 3-Way Mixing
• Flow Coefficient: 1 Cv

Product Highlights

This ball valve is designed for mixing and diverting in piping systems. Its close-off capability is rated at seventy psi.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged Brass
• Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Glycol 60%, Water
• Operating Fluid Temperature: -7 to 121 °C
• Seat Leakage: Port A: Class IV (0.01 %)
• Height: 2.125984252 inches
• Width: 2.440944882 inches
• Length: 2.755905512 inches
