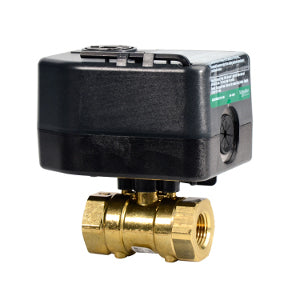

Schneider Electric VBB2N17+M210M02 SpaceLogic Ball Valve Assembly 3/4 2-Way

Product Description

Schneider Electric VBB2N17+M210M02 is a ball valve assembly designed for precise flow control in various HVAC and plumbing applications. This valve features a three-fourths inch body size, a two-way configuration, and is built with high-quality brass trim. It operates under a maximum close-off pressure of one hundred thirty psi and delivers a flow coefficient of ten Cv.

• Electric actuator type for automatic control
• NPT connection for versatile installation
• Spring return mechanism ensures the valve returns to a set position in case of power loss

Product Highlights

This assembly is suitable for HVAC professionals requiring reliable performance in controlling water or fluid flow. It is not suitable for use with steam.

Product Information

Standard Information

• Product Type: Valve-actuator assembly
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 3/4 in
• Configuration: 2-Way
• Material Trim: Brass
• Flow Coefficient: 10 Cv
• Close-Off Pressure: 130 psi
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 110 to 277 VAC
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: 0-76.1 °C
• Relative Humidity: 5-95 % non-condensing
• Loss of Power Position: Normally open
