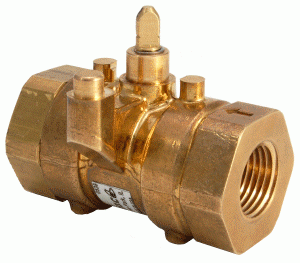

Schneider Electric VBB2N13 SpaceLogic Ball Valve 3/4 2-Way Brass Trim

Product Description

The Schneider Electric VBB2N13 is a reliable ball valve designed for various control applications. This valve features a three-fourth inch size and functions as a two-way type ball valve. It comes with brass trim and provides a flow coefficient of two point one Cv. The valve is rated for a close-off pressure of one hundred thirty psi. It is suitable for use with water and various concentrations of glycol.

• Body size: 3/4 inch
• Flow coefficient: 2.1 Cv
• Material: Brass trim

Product Highlights

This valve is part of the SpaceLogic product line and is ideal for HVAC and plumbing applications. It provides consistent performance and durability.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve

Technical Specifications

• Configuration: 2-Way
• Connection Type: NPT
• Operating Fluid Temperature: -7-121 °C
• Estimated Flow Rating: 2.1 Cv
• Country of Origin: US
• Material Type: Forged brass
• Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Glycol 60%, Water
