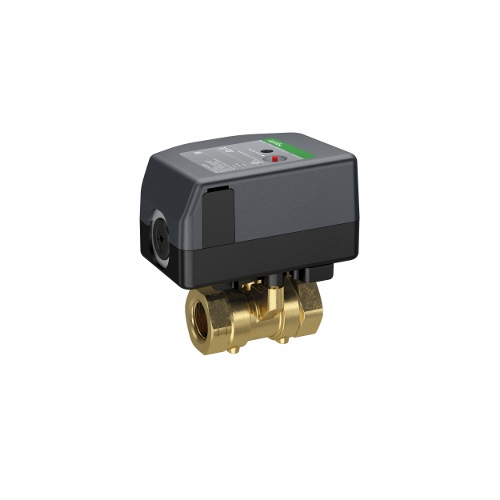

Schneider Electric VBB2N12+M332A01 SpaceLogic Ball Valve Assembly 3/4 2-Way Brass Trim

Product Description

The Schneider Electric Ball Valve Assembly VBB2N12+M332A01 is designed for effective control of fluid flow. This model is a two-way valve that is made from forged brass, ensuring durability and reliability. It operates with a rotary actuator and is suitable for a variety of heating, ventilation, and air conditioning (HVAC) applications.

• Flow capacity of 1.2 Cv
• Rated for a pressure of 130 psi
• Includes a ten-foot plenum cable for easy installation

Product Highlights

This valve operates with a voltage of 24 VAC and supports automatic reset control for efficient operation.

Product Information

Standard Information

• Body Material: Forged Brass
• Actuator Type: Rotary

Technical Specifications

• Operating Fluid Temperature: -7 to 121 °C
• Close-Off Pressure: 130 psi
• Ambient Air Temperature for Operation: 0 to 60 °C
• Ambient Air Temperature for Storage: -40 to 76 °C
• Relative Humidity: 5-95% Non-Condensing
• Power Consumption: 2.4 VA AC
• IP Degree of Protection: IP11
• NEMA Degree of Protection: NEMA 2
