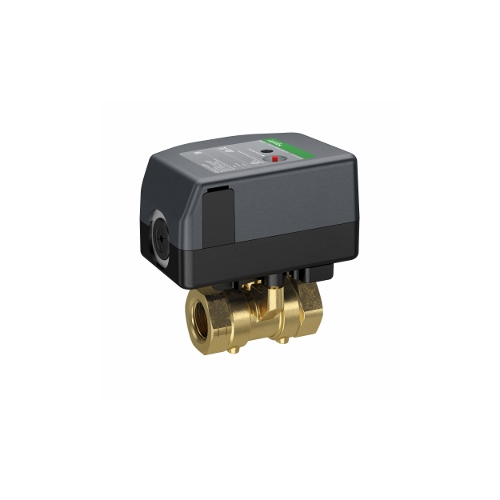

Schneider Electric VBB2N10 M332A01 SpaceLogic Ball Valve Assembly 3/4 2-Way Replacement MPN

Product Description

The Schneider Electric VBB2N10+M332A01 is a space logic ball valve assembly designed for efficient fluid control in various applications. It features a two-way configuration and is equipped with brass trim. The valve assembly has a flow coefficient of 0.3 Cv and can handle close-off pressures of up to 130 psi. This product operates on 24 VAC and includes a 10-foot plenum cable.

• Suitable for North American applications.
• Automatic reset control type enhances reliability.
• Constructed with forged brass for durability.

Product Highlights

This ball valve assembly is ideal for HVAC systems and is designed for both residential and commercial use. The device ensures precise fluid control while maintaining performance even under varied temperature conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: USA

Technical Specifications

• MPN: VBB2N10+M332A01
• Body Material: Forged Brass
• Actuator Type: Rotary
• Operating Temperature: -7 to 121 °C
• Ambient Temperature for Operation: 0 to 60 °C
• Ambient Temperature for Storage: -40 to 76 °C
• Power Consumption: 2.4 VA AC
• IP Protection Rating: IP11
