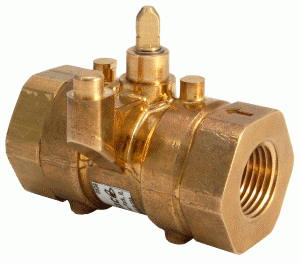

Schneider Electric VBB2N03 Ball Valve NPT 2.1CV BS Trim

Product Description

The Schneider Electric VBB2N03 Ball Valve offers reliable performance for fluid control applications. This 1/2-inch NPT valve, with a 2.1 Cv flow coefficient, is constructed from high-quality brass, ensuring durability and corrosion resistance. Its design includes a Buna-N seat for a secure seal, complementing the robust brass trim.

• Designed for precise flow control in industrial settings.
• Features a lever handle for easy operation and a blow-out proof stem for enhanced safety.
• Suitable for a wide range of temperatures from -40 to 450 degrees Fahrenheit, with a maximum pressure rating of 600 PSI.

Product Highlights

Optimal for fluid power systems in sectors like chemical processing, power generation, and oil and gas industries.

Product Information

Standard Information

• Brand: Schneider Electric (Barber Colman)
• Model Number: VBB2N03

Technical Specifications

• Connection Type: 1/2 inch NPT
• Material: Brass
• Seat Material: Buna-N
• Operating Temperature Range: -40 to 450 degrees Fahrenheit
• Pressure Rating: 600 PSI
• Country of Origin: United States
