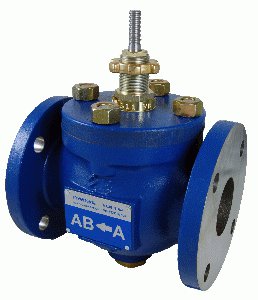

Schneider Electric VB-8223-0-5-16 Globe Valve 6 in 2-way

Product Description

Schneider Electric VB-8223-0-5-16 is a globe valve with a size of six inches. This valve features a two-way configuration and is designed with a flanged cast iron body. The valve's stem flow action is stem up when closed, and it is equipped with brass trim. The flow coefficient is rated at three hundred seventy Cv, utilizing balanced plug technology, making it suitable for various applications.

• Body Size: six inches
• Material: cast iron with brass trim
• Control Media: Glycol, steam, and water

Product Highlights

This valve is designed for reliable performance in HVAC, plumbing, and industrial applications where precise flow control is necessary.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Body Type: Globe
• Flow Coefficient: 370 Cv
• Stem Flow Action: Stem up closed
• Operating Fluid Temperature: -7 to 138 °C
• Saturated Steam Temperature: -7 to 138 °C
• Seat Material: Brass
• Seat Leakage: Class IV (0.01%)
• Connection Type: Flanged
