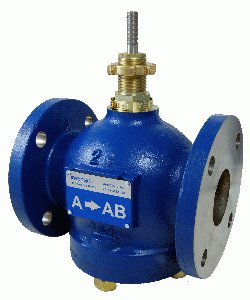

Schneider Electric VB-8213-0-5-16 Globe Valve 6 in 2-Way Replacement MPN

Product Description

Schneider Electric offers the VB-8213-0-5-16 Globe Valve, designed for efficient flow control. This valve features a six-inch size and a two-way flow configuration. It comes with a cast iron body and has a stem-up open feature. The valve utilizes balanced plug technology to ensure reliable performance.

• Body Size: Six inches
• Brass trim for enhanced durability
• Flow coefficient of 370 Cv

Product Highlights

Ideal for controlling media such as steam, water, and glycol ranging from twenty-five to fifty percent, this valve is suitable for various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: VB-8213-0-5-16

Technical Specifications

• Body Material: Cast iron
• Flow Coefficient: 370 Cv
• Control Media: Glycol 25 to 50%, Steam, Water
• Operating Fluid Temperature: From minus seven to one hundred thirty-eight degrees Celsius
• Seat Leakage: Class IV (0.01% Port A)
• Seat Material: Brass
• Connection Type: Flanged
• Product Line: VB-8200 Series
