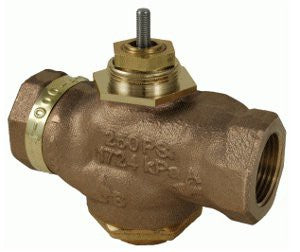

Schneider Electric VB-7323-0-4-09 Valve Body 3-Way Diverting 1-1/4 in No Steam

Product Description

Schneider Electric VB-7323-0-4-09 is a specialized valve body designed for various industrial applications. This globe valve features a body size of one and one-quarter inches and a three-way diverting configuration. It connects via NPT and is made of durable brass material. The valve operates efficiently with a flow coefficient of twenty, suitable for controlling media such as glycol and water. This valve is part of the Venta product line and series VB-7300.

• Body Size: 1-1/4 in
• Flow Coefficient: 20 cv
• Control Media: Glycol 25 to 60%, Water

Product Highlights

This valve is not intended for steam applications, ensuring safe and effective usage in its intended environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US

Technical Specifications

• Configuration: 3-Way Diverting
• Material Trim: Brass
• Stem Flow Action: Stem up flow B to AB
• Product Line: Venta
• Operating Fluid Temperature: -7-138 °C
• Seat Material: Port A & B: bronze
• Seating Seal Material: Port A & B: metal to metal
• Seat Leakage: Port A: Class III (0.1 %)
