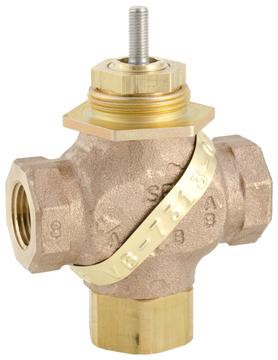

Schneider Electric VB-7323-0-4-04 Valve Body 3 Way Diverting 1/2 in

Product Description

Schneider Electric VB-7323-0-4-04 is a valve body designed for various fluid control applications. This model features a half-inch size and a three-way diverting configuration. The globe valve design incorporates a brass trim and NPT connection, ensuring reliable performance in systems using water or glycol.

• Body Size: 1/2 in
• Configuration: 3-Way Diverting
• Product Series: VB-7300

Product Highlights

This valve is suitable for use in glycol and water systems, with a flow coefficient of 4.4 cv. It is not intended for steam applications, making it ideal for cooling and heating systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: VB-7323-0-4-04

Technical Specifications

• Body Material: Bronze
• Stem Flow Action: Stem up flow B to AB
• Control Media: Glycol 25 to 60%, Water
• Operating Fluid Temperature: Negative seven to one hundred thirty-eight degrees Celsius
• Seat Leakage: Class III (0.1 %)
• Flow Coefficient: 4.4 cv
