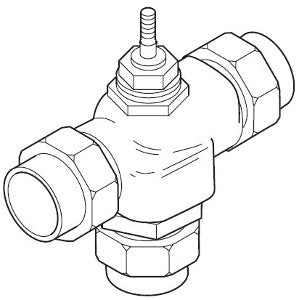

Schneider Electric VB-7314-0-4-11 Valve Body 2 in 3-Way Mixing Globe

Product Description

Schneider Electric VB-7314-0-4-11 is a valve body suitable for mixing applications. This valve features a two-inch body size with a three-way mixing configuration. The globe design allows for effective flow control and is compatible with various media, including glycol and water. It utilizes a sweat connection and is not designed for steam applications.

• Body Size: 2 inches
• Flow Coefficient: 41 cv
• Material Trim: Brass

Product Highlights

This valve is part of the Venta product line and offers reliable operation for HVAC systems and fluid control.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Configuration: 3-Way Mixing
• Connection: Sweat
• Stem Flow Action: Stem down flow A to AB
• Control Media: Glycol 25 to 60%, Water
• Seat Material: Bronze
• Seating Seal Material: EPDM (Port A), Metal to Metal (Port B)
• Operating Fluid Temperature: -7 to 138 °C
• Weight: 6.985 kg
