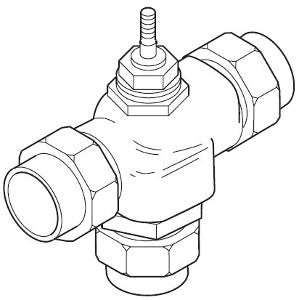

Schneider Electric VB-7314-0-4-09 Valve Body 1-1/4 In 3-Way Mixing No Steam

Product Description

Schneider Electric VB-7314-0-4-09 is a valve body designed for specific fluid control applications. This valve features a body size of one and one-fourth inches and operates as a three-way mixing valve. It connects through sweat and is suitable for use with glycol and water as control media. This valve is not intended for steam applications.

• Body Size: 1-1/4 inches
• Configuration: 3-Way Mixing
• Material Trim: Brass

Product Highlights

This valve is ideal for applications requiring precise fluid control with reliable performance.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VB-7314-0-4-09

Technical Specifications

• Connection Type: Sweat
• Flow Coefficient (cv): 20
• Control Media: Glycol 25 to 60%, Water
• Product Series: VB-7300
• Stem Flow Action: Stem down flow A to AB
• Body Material: Bronze
• Seat Material: Bronze
• Seating Seal Material: EPDM (ethylene propylene diene monomer)
