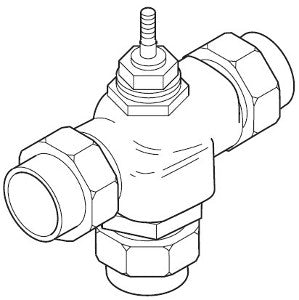

Schneider Electric VB-7314-0-4-06 Valve Body 3-Way Mixing 3/4 in Replacement MPN

Product Description

Schneider Electric VB-7314-0-4-06 is a valve body designed for use in various fluid control applications. This valve features a three-way mixing configuration and accommodates a three-quarter inch connection. The body material consists of bronze, making it suitable for multiple media types, including glycol and water, with an impressive flow coefficient of seven point five cv.

• Body size: 3/4 inch
• Configuration: 3-Way Mixing
• Type: Globe valve

Product Highlights

This valve body supports stem down flow from A to AB. It is essential for HVAC and plumbing systems where precise fluid control is required. This component is not suitable for steam applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Body Material: Bronze
• Flow Coefficient: 7.5 cv
• Control Media: Glycol 25 to 60%, Water
• Operating Fluid Temperature: -7 to 138 °C
• Seat Leakage: Port A: Class IV (0.01 %), Port B: Class III (0.1 %)
• Stem Flow Action: Stem down flow A to AB
