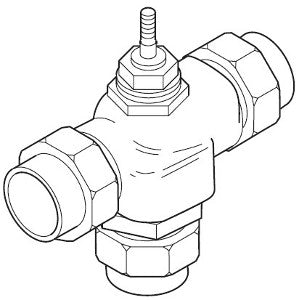

Schneider Electric VB-7314-0-4-04 Valve Body 3W Mix 1/2 in

Product Description

Schneider Electric VB-7314-0-4-04 is a valve body designed for fluid control applications. The valve features a body size of one-half inch and operates as a three-way mixing valve. This globe valve is particularly suited for use with glycol and water, making it ideal for heating and cooling systems.

• Body Size: 1/2 in
• Configuration: 3-Way Mixing
• Flow Coefficient: 4.4 cv

Product Highlights

This valve is not suitable for steam applications and is built with a brass trim for durability.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Material Trim: Brass
• Control Media: Glycol 25 to 60%, Water
• Product Line: Schneider Electric
• Operating Fluid Temperature: -7 to 138 °C
• Seat Leakage: Port A: Class IV (0.01 %), Port B: Class III (0.1 %)
• Seating Seal Material: PTFE (Polytetrafluoroethylene)
• Product Series: VB-7300
