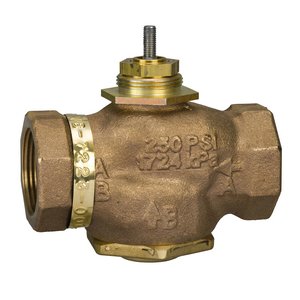

Schneider Electric VB-7283-0-4-09 Venta Globe Valve 1-1/4 in 2-way

Product Description

The Schneider Electric VB-7283-0-4-09 is a Venta Globe Valve designed for efficient flow control. This valve features a body size of one and one-fourth inches and operates as a two-way globe valve. It has a straightway body pattern with threaded NPT connections. The valve's stem is configured to close with the stem in the up position and is constructed with stainless steel trim, ensuring durability.

• Designed for control of glycol, steam, and water.
• Flow coefficient rating of twenty Cv for effective flow management.
• Built for North American standards with a bronze body material.

Product Highlights

This valve is suitable for use in heating and cooling systems where precise flow control is critical.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Line: Venta

Technical Specifications

• Body Size: 1-1/4 in
• Configuration: 2-way
• Body Material: Bronze
• Flow Coefficient: 20 Cv
• Operating Fluid Temperature: -7-204 °C
• Saturated Steam Temperature: -7-204 °C
• Seat Material: Stainless steel 316
• Stem Flow Action: Stem up closed
