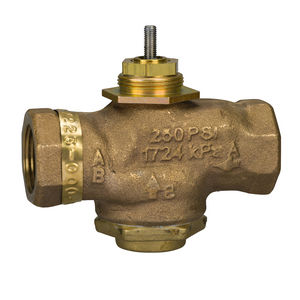

Schneider Electric VB-7283-0-4-08 Venta Globe Valve 1 in 2-way Replacement MPN

Product Description

The Schneider Electric VB-7283-0-4-08 is a Venta globe valve designed for efficient control of medium flows. This valve features a body size of one inch and operates in a two-way configuration. It is suitable for applications involving glycol, steam, and water. Its straightway body pattern ensures minimal turbulence during flow.

• Body Size: 1 inch
• Flow Coefficient: 12 Cv
• Material: Stainless Steel Trim

Product Highlights

This valve is engineered for straightforward installation and reliable operation. Its stainless steel trim ensures durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Type: Globe
• Body Pattern: Straightway
• Connection Type: NPT
• Stem Action: Stem up closed
• Control Media: Glycol 25 to 60%, Steam, Water
• Flow Coefficient (Cv): 12
• Saturated Steam Temperature: -7 to 204 °C
• Seat Material: Stainless Steel 316
• Port A Leakage Class: Class III (0.1%)
