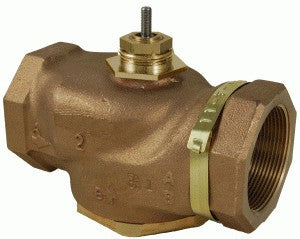

Schneider Electric VB-7273-0-4-10 Venta Globe Valve 1-1/2 in 2-way straight threaded NPT

Product Description

The Schneider Electric VB-7273-0-4-10 is a Venta globe valve designed for various fluid control applications. This valve features a body size of one and one-half inches, utilizing a two-way configuration. It is constructed with stainless steel trim and is suitable for steam, water, and glycol media. The valve allows for a maximum flow coefficient of 28 Cv.

• Material Trim: Stainless Steel
• Connection Type: Straight threaded NPT
• Control Media: Glycol, Steam, Water

Product Highlights

The VB-7273-0-4-10 valve provides effective flow control in HVAC and plumbing systems. It is ideal for use in North American regions, offering reliability and durability in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Body Size: 1-1/2 inches
• Configuration: 2-Way
• Flow Coefficient: 28 Cv
• Operating Fluid Temperature: -7 to 204 °C
• Saturated Steam Temperature: -7 to 204 °C
• Seat Material: Stainless Steel 316
• Seat Leakage: Class III (0.1 %)
• Country of Origin: US
