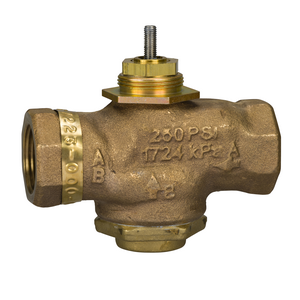

Schneider Electric VB-7273-0-4-08 Venta Globe Valve 1 in 2-way straight threaded NPT

Product Description

Schneider Electric VB-7273-0-4-08 is a globe valve designed for fluid control. This valve has a one-inch body size and utilizes a two-way configuration. The connection type is straight threaded NPT, making installation straightforward. The valve operates with the stem up open action and features stainless steel trim with metal seats. It is suitable for various applications including glycol, steam, and water.

• Body Size: 1 inch
• Flow Coefficient: 14 Cv
• Control Media: Glycol 25 to 60%, Steam, Water

Product Highlights

This valve is ideal for HVAC systems and industrial applications where reliable fluid flow control is necessary.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Configuration: 2-Way
• Body Pattern: Straightway
• Stem Flow Action: Stem up A open
• Material Trim: Stainless Steel
• Operating Fluid Temperature: -7 to 204 °C
• Saturated Steam Temperature: -7 to 204 °C
• Seat Leakage: Class III (0.1 %)
• Country of Origin: US
