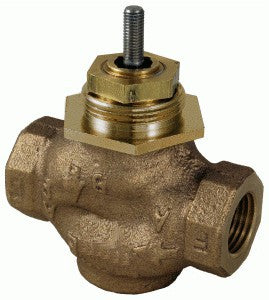

Schneider Electric VB-7273-0-4-06 Venta Globe Valve 3/4 in 2-way

Product Description

The Schneider Electric VB-7273-0-4-06 is a 3/4-inch globe valve designed for various fluid control applications. This two-way valve features a straight NPT connection and opens with the stem in the upward position. It is equipped with stainless steel trim and metal seats, ensuring durability and longevity in demanding environments.

• Body size: 3/4 inch
• Flow coefficient: 7.5 Cv
• Material: Stainless steel trim

Product Highlights

This valve is ideal for controlling steam, water, and glycol mixtures. It operates effectively in temperatures ranging from negative seven to two hundred four degrees Celsius, making it suitable for a variety of industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• MPN: VB-7273-0-4-06
• Body Pattern: Straightway
• Control Media: Glycol 25% to 60%, Steam, Water
• Seat Material: Port A: Stainless steel 316
• Seating Seal Material: Port A: Stainless steel 316
• Saturated Steam Inlet Pressure: 150 psi
• Seat Leakage: Class III (0.1%)
