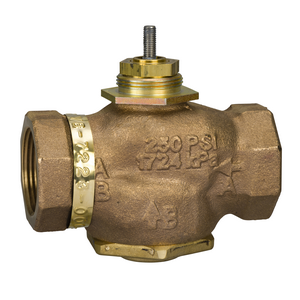

Schneider Electric VB-7263-0-4-09 Venta Globe Valve 1-1/4 in 2-way straight threaded NPT

Product Description

The Schneider Electric VB-7263-0-4-09 is a globe valve designed for effective flow control in various applications. This valve features a body size of one and one-quarter inches and operates as a two-way valve with a straight way pattern. It utilizes NPT connections and has a stem up position to close the valve. Constructed with stainless steel trim and soft seats, this valve provides durability and reliability.

• Body size of one and one-quarter inches
• Flow coefficient rating of twenty Cv
• Compatible with glycol, steam, and water mediums

Product Highlights

The VB-7263-0-4-09 valve is designed for easy installation and efficient control of various media, making it suitable for HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Bronze
• Operating Fluid Temperature: -7 to 171 degrees Celsius
• Saturated Steam Temperature: -7 to 171 degrees Celsius
• Seat Leakage: Port A: Class IV (0.01%)
• Seat Material: Stainless steel 316
• Seating Seal Material: PTFE (polytetrafluoroethylene)
• Flow Coefficient: 20 Cv
• Control Media: Glycol 25 to 60%, Steam, Water
