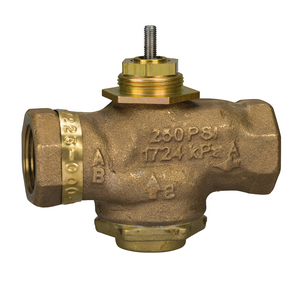

Schneider Electric VB-7263-0-4-08 Venta Globe Valve 1 in 2-Way Straight Threaded NPT

Product Description

The Schneider Electric VB-7263-0-4-08 is a Venta globe valve designed for effective fluid control. This valve has a body size of one inch, features a two-way configuration, and is built with a straightway pattern. It utilizes NPT connections and operates with the stem up to close. The valve trim is made from stainless steel which enhances durability.

• Body Size: 1 inch
• Material Trim: Stainless Steel
• Flow Coefficient: 14 Cv

Product Highlights

The valve is suitable for various control media including glycol, steam, and water. It can handle operating fluid temperatures ranging from negative seven to one hundred seventy-one degrees Celsius. The product also meets Class IV and Class V seat leakage specifications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Bronze
• Connection Type: NPT
• Operating Fluid Temperature: -7 to 171 °C
• Flow Coefficient: 14 Cv
• Seat Leakage: Class IV (0.01 %)
• Control Media: Glycol 25 to 60%, Steam, Water
• Seating Seal Material: PTFE
• Saturated Steam Inlet Pressure: 100 psi
