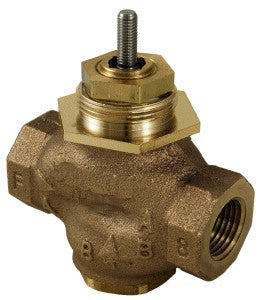

Schneider Electric VB-7263-0-4-05 Venta Globe Valve 3/4 in NPT

Product Description

Schneider Electric VB-7263-0-4-05 is a Venta globe valve designed for various applications. It features a three quarter-inch size and connects using NPT threads. This two-way valve is configured to keep the stem up when closed, providing reliable operation. Made with stainless steel trim and soft seats, this valve also includes a flow coefficient of five point five. It is ideal for controlling media like glycol, steam, and water.

• Body Size: Three quarters inch
• Type: Globe valve
• Flow Coefficient: 5.5 cv

Product Highlights

The VB-7263-0-4-05 ensures strong flow control and reliable sealing under various operating conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Material Trim: Stainless Steel
• Operating Fluid Temperature: -7 to 171 °C
• Seat Material: Stainless Steel 316
• Seating Seal Material: PTFE
• Saturated Steam Temperature: -7 to 171 °C
• Seat Leakage: Class IV and V
• Flow Control Media: Glycol 25 to 60%, Steam, Water
