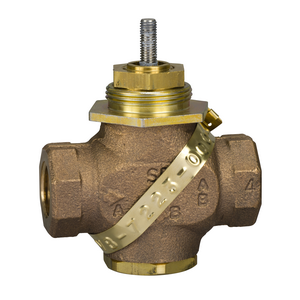

Schneider Electric VB-7263-0-4-03 Venta Globe Valve 1/2 in 2-way 2.2 Cv

Product Description

The Schneider Electric VB-7263-0-4-03 is a Venta globe valve designed for various fluid control applications. This valve features a half-inch size, a two-way configuration, and a straight threaded NPT connection. The valve is equipped with stainless steel trim and soft seats, ensuring reliable performance. The flow coefficient is measured at 2.2 Cv, making it suitable for controlling glycol, steam, and water.

• Body size: one half inch
• Configuration: two-way
• Flow coefficient: 2.2 Cv

Product Highlights

This valve is ideal for HVAC systems, plumbing installations, and water treatment facilities.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve
• Product Line: Venta

Technical Specifications

• Body Material: Bronze
• Operating Fluid Temperature: Negative seven to one hundred seventy-one degrees Celsius
• Seat Material: Stainless steel 316
• Seating Seal Material: PTFE
• Connection Type: NPT
• Control Media: Glycol 25 to 60%, steam, water
• Seat Leakage: Class IV (0.01%) Port A
• Saturated Steam Temperature: Negative seven to one hundred seventy-one degrees Celsius
