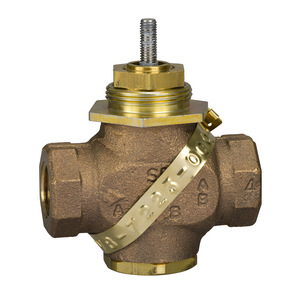

Schneider Electric VB-7263-0-4-01 Venta Globe Valve 2-way 1/2 in

Product Description

The Schneider Electric VB-7263-0-4-01 is a Venta globe valve designed for precise flow control in various systems. This valve features a half-inch size and a two-way configuration, making it suitable for a range of applications.

• Body Size: 1/2 inch
• Configuration: 2-way
• Material Trim: Stainless Steel

Product Highlights

This globe valve is ideal for controlling fluid flow in systems that utilize glycol, steam, or water. With a flow coefficient of 0.4 Cv, it offers efficient flow regulation for your needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Stem Flow Action: Stem up A closed
• Flow Coefficient: 0.4 Cv
• Control Media: Glycol 25 to 60%, Steam, Water
• Operating Fluid Temperature: -7 to 171 °C
• Saturated Steam Temperature: -7 to 171 °C
• Seat Leakage: Port A: Class IV (0.01 %) & Port A: Class V
• Seat Material: Stainless steel 316
• Seating Seal Material: PTFE (polytetrafluoroethylene)
