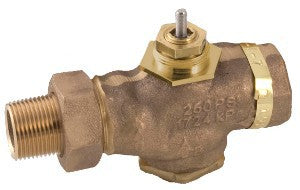

Schneider Electric VB-7221-0-4-08 Valve Venta 1 inch 2-way Straight Union NPT

Product Description

The Schneider Electric VB-7221-0-4-08 is a globe valve designed for reliable control of various fluids. This valve features a body size of one inch with a two-way configuration suitable for direct flow regulation.

• Body Material: Brass
• Flow Coefficient: 14 cv
• Control Media: Compatible with glycol, steam, and water

Product Highlights

This valve is ideal for HVAC systems utilizing glycol or steam for heating. With its robust brass construction and reliable sealing capabilities, it provides effective flow control in numerous applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Body Size: 1 inch
• Configuration: 2-way
• Body Pattern: Straightway
• Connection Type: Union-NPT
• Stem Flow Action: Stem up Closed
• Flow Coefficient: 14 cv
• Saturated Steam Temperature: -7 to 138 °C
• Seat Leakage: Class IV (0.01 %) at Port A
• Seating Seal Material: EPDM
• Country of Origin: US
