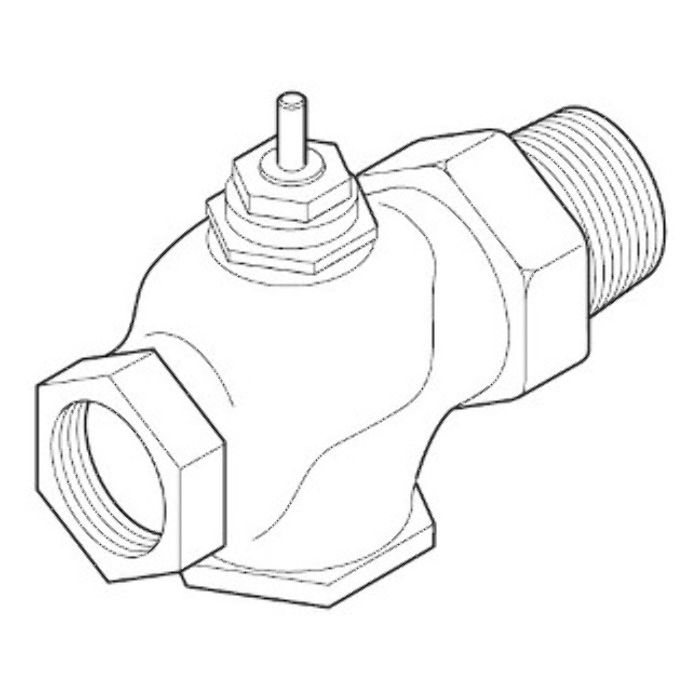

Schneider Electric VB-7221-0-4-02 Globe Valve 2 Way 1/2 in. 1.3 Cv

Product Description

The Schneider Electric VB-7221-0-4-02 is a two-way globe valve designed for efficient control in HVAC systems. Ideal for applications involving chilled water, hot water, and steam, this valve features a 1/2 inch connection size and a flow coefficient of 1.3 Cv. Its high rangeability allows for precise control, making it suitable for responsive temperature regulation.

• Constructed with brass trim and a soft seat for tight sealing and minimal energy loss.
• Environmentally compliant, meeting ANSI, PED, ASTM, and CRN standards.
• Designed for two-position, floating, or proportional control applications.

Product Highlights

This valve ensures energy conservation through ultra-low leakage on shutoff. It is engineered for high performance and efficiency across a variety of HVAC scenarios.

Product Information

Standard Information

• Brand: Schneider Electric
• Min Order Qty: 1

Technical Specifications

• Service: Glycol 25 to 60%, Steam, Water
• Stem Action: Up Closed
• Flow Characteristic: Modified Equal Percentage
• Operating Conditions: 20 F to 281 F (-7 C to 138 C)
