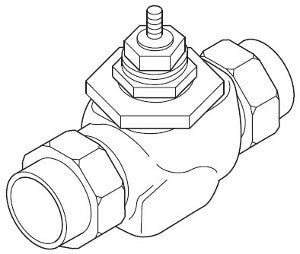

Schneider Electric VB-7214-0-4-04 Venta Globe Valve 1/2 in 2-way Straightway Sweat

Product Description

The Schneider Electric VB-7214-0-4-04 is a globe valve designed for systems requiring precise flow control. This model features a body size of half an inch, a two-way configuration, and a straightway design. The valve connects using sweat fittings and has a stem that opens when positioned upward. The body is made of brass, ensuring durability and efficiency in various applications.

• Control media options include glycol, steam, and water.
• Flow coefficient is rated at 4.4 cv.
• Suitable for use in North America with operating fluid temperatures ranging from minus seven to one hundred thirty-eight degrees Celsius.

Product Highlights

This valve is part of the Venta product line by Schneider Electric and is effective for controlling flow in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta
• Product Type: Valve

Technical Specifications

• Body Size: 1/2 inches
• Configuration: 2-Way
• Body Pattern: Straightway
• Connection: Sweat
• Stem Flow Action: Stem up open
• Material Trim: Brass
• Flow Coefficient: 4.4 cv
• Control Media: Glycol 25-60%, Steam, Water
• Operating Fluid Temperature: -7 to 138 degrees Celsius
• Seat Leakage: Port A: Class IV (0.01 %), Port A: Class V
• Seat Material: Bronze
• Seating Seal Material: PTFE
