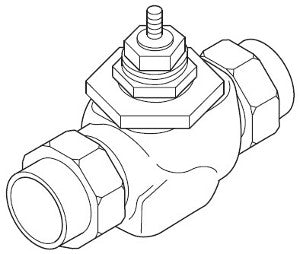

Schneider Electric VB-7214-0-4-03 Globe Valve 2 Way 1/2 in 2.2 Cv

Product Description

The Schneider Electric VB-7214-0-4-03 Globe Valve is designed for precise flow control in HVAC systems. This valve features a compact size of one-half inch and a flow coefficient of 2.2, making it suitable for use with both chilled and hot water, as well as steam. With its union sweat and brass trim, it ensures a reliable copper connection.

• High rangeability for efficient and responsive temperature control.
• Tight sealing with minimal energy leakage when shut off.
• Complies with ANSI, PED, ASTM, and CRN standards.

Product Highlights

This valve is optimized for two-position, floating, or proportional control applications, making it versatile for various HVAC needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: VB-7214-0-4-03

Technical Specifications

• Service: Glycol 25 To 60%, Steam, Water
• Stem Action: Up Open
• Flow Characteristic: Modified Equal Percentage
• Operating Conditions: 20 F To 281 F (-7 C To 138 C)
