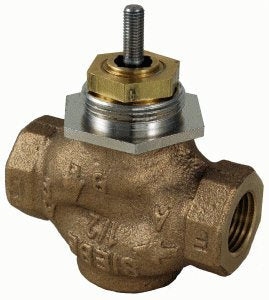

Schneider Electric VB-7213-0-4-09 Two-Way Globe Valve Body 1-1/4 Port Size

Product Description

The Schneider Electric VB-7213-0-4-09 is a part of the VB-7000 Series two-way globe valve bodies. It is designed for precise control in HVAC systems, including chilled water, hot water, and steam applications. The valve features a brass plug and a 1-1/4 inch port size with NPT threaded straight pipe end connections.

• High range ability for efficient control
• Energy-saving tight seal
• Suitable for high differential-pressure environments

Product Highlights

Schneider Electric's VB-7213-0-4-09 offers reliable performance with fine, accurate control, making it ideal for diverse HVAC applications. It features a patented plug that ensures precise heat transfer.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VB-7213-0-4-09

Technical Specifications

• Port Size: 1-1/4 inches
• Valve Type: Two-Way Globe Valve
• Connection Type: NPT Threaded
• Operation: Stem Up Open
• Plug Material: Brass
• Application: Chilled Water, Hot Water, Steam
• Differential Pressure: Up to 87 psi
• Compliance: RoHS, ANSI, PED, CRN
