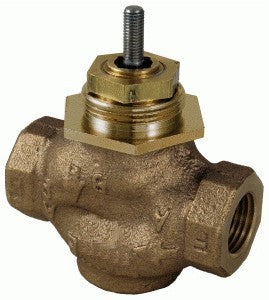

Schneider Electric VB-7213-0-4-05 Venta Globe Valve 3/4 in 2-way straight threaded NPT

Product Description

Schneider Electric VB-7213-0-4-05 is a globe valve designed for various applications. This valve features a size of three-fourths inch and operates as a two-way valve. The valve's configuration allows for efficient control of flow in a straight threaded NPT connection. Made with brass trim and capable of handling media such as glycol, steam, and water, it offers reliable functionality in multiple environments.

• Body Size: 3/4 inch
• Flow Coefficient: 5.5 CV
• Stem Flow Action: Stem up open

Product Highlights

This valve is suitable for both industrial and commercial use, ensuring optimal control of fluid movement.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Configuration: 2-way
• Body Pattern: Straightway
• Material Trim: Brass
• Control Media: Glycol 25 to 60%, Steam, Water
• Operating Fluid Temperature: -7 to 138 °C
• Seat Material: Bronze
• Seating Seal Material: PTFE
• Saturated Steam Inlet Pressure: 35 psi
