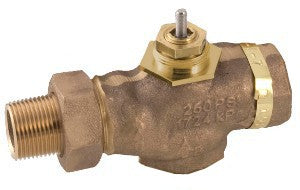

Schneider Electric VB-7211-0-4-09 Venta Globe Valve 2-way Straight Union NPT

Product Description

The Schneider Electric VB-7211-0-4-09 is a globe valve designed for fluid control in various applications. This valve features a body size of one and one-fourth inches and operates as a two-way valve. It has a straightway configuration with a union-NPT connection. The stem up action facilitates flow control, while the brass trim provides durability. It is suitable for controlling media such as steam, glycol, and water within a temperature range of negative seven to one hundred thirty-eight degrees Celsius.

• High flow coefficient of twenty Cv
• Compatible with glycol solutions up to sixty percent
• Designed for North American standards

Product Highlights

This valve is part of the Venta product line by Schneider Electric, known for efficient fluid control.

Product Information

Standard Information

• Product Type: Valve
• Brand: Schneider Electric

Technical Specifications

• Body Material: Bronze
• Flow Coefficient: 20 Cv
• Connection Type: Union-NPT
• Stem Flow Action: Stem up Open
• Operating Temperature: -7 to 138 °C
• Seat Material: Bronze
• Seating Seal Material: EPDM
• Saturated Steam Inlet Pressure: 35 psi
