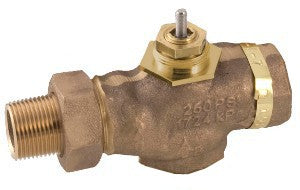

Schneider Electric VB-7211-0-4-07 Venta Globe Valve 1 in 2-way Straight Union NPT

Product Description

The Schneider Electric VB-7211-0-4-07 is a globe valve designed for effective control of fluid flow. This valve features a size of one inch and operates in a two-way configuration. It utilizes a straight union NPT connection for easy installation. The stem position opens flow when positioned upwards. The construction includes a brass trim, ensuring durability in various applications.

• Design: 2-way globe valve
• Material: Brass trim
• Flow coefficient: 10 Cv

Product Highlights

This valve is suitable for controlling glycol mixtures, steam, and water, making it versatile in HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Series: VB-7200

Technical Specifications

• Body Size: 1 in
• Connection: Union-NPT
• Stem Flow Action: Stem up A open
• Flow Coefficient: 10 Cv
• Control Media: Glycol 25 to 60%, Steam, Water
• Operating Fluid Temperature: -7 to 138 °C
• Seat Leakage: Class IV (0.01%)
• Seat Material: Bronze
