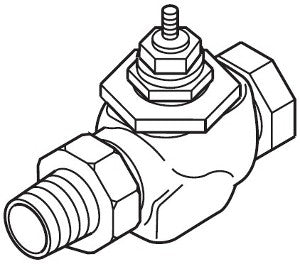

Schneider Electric VB-7211-0-4-01 Venta Globe Valve 1/2 In 2-Way Straight Union NPT

Product Description

The Schneider Electric VB-7211-0-4-01 is a globe valve designed for reliable control of various fluids. This valve features a body size of one half inch and operates with a two-way configuration. It is constructed with a straightway connection and utilizes a union-NPT fitting to enhance compatibility with existing piping systems.

• Body size: 1/2 inch
• Flow coefficient: 0.4 Cv
• Control media: Glycol, steam, water

Product Highlights

This valve offers flexible applications across different environments, from heating systems using glycol to steam and water control. Its brass trim provides durability, ensuring long-term performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Bronze
• Seating Seal Material: PTFE (polytetrafluoroethylene)
• Saturated Steam Inlet Pressure: 35 psi
• Operating Fluid Temperature: -7 to 138 °C
• Stem Flow Action: Stem up open
• Seat Material: Bronze
• Control Media: Glycol 25 to 60%, steam, water
• Leakage Classification: Port A: Class IV (0.01 %)
