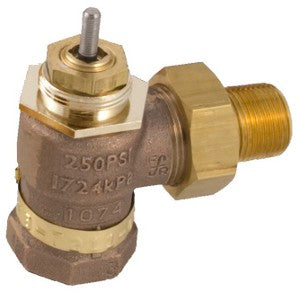

Schneider Electric VB-7211-0-3-08 Valve Body, 1 in, 2-Way, Globe, Angle, Union-NPT, Venta

Product Description

The Schneider Electric VB-7211-0-3-08 is a globe valve designed for various applications. This valve features a body size of one inch and operates as a two-way valve. It utilizes an angle configuration and a union-NPT connection for easy installation.

• Body Size: 1 in
• Configuration: 2-Way
• Flow Coefficient: 16 cv

Product Highlights

This valve is suitable for controlling media such as glycol, steam, and water. It is part of the Venta product line and offers a robust brass trim for reliable performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta

Technical Specifications

• Body Pattern: Angle
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Operating Temperature: -7-138 °C
• Control Media: Glycol 25 to 60%, Steam, Water
• Seat Material: Bronze
• Seating Seal Material: EPDM
• Seat Leakage: Class IV (0.01 %)
• Saturated Steam Inlet Pressure: 35 psi
