Schneider Electric VB-2313-500-9-06 valve 3W 1/2 in NPT replacement MPN

Product Description

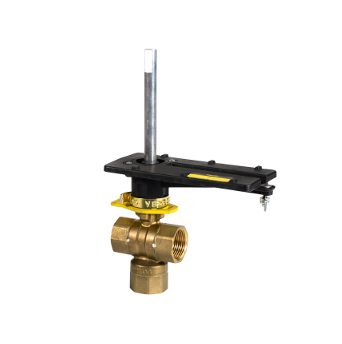

The Schneider Electric VB-2313-500-9-06 is a half-inch three-way mixing valve. This ball valve is designed with a brass body and NPT connection. It is suitable for various control media, including different percentages of glycol and water. This valve is not compatible with steam applications.

• Body Size: 1/2 inches
• Type: Ball valve
• Flow Coefficient: 8 cv

Product Highlights

This valve provides reliable performance for fluid control systems in North American applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Material Trim: Brass
• Control Media: Glycol 25%, Glycol 30%, Glycol 50%, Water
• Operating Fluid Temperature: -7 to 121 °C
• Seat Leakage: Port A: Class IV (0.01 %)
• Product Series: VB-2300
• Valve Rotation: Not specified
• Full Port Model: Yes
