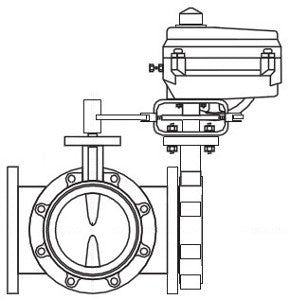

Schneider Electric VAUS-630C-E50-L-19 valve actuator assembly

Product Description

The Schneider Electric VAUS-630C-E50-L-19 is a valve actuator assembly designed for various applications. This unit measures twelve inches and utilizes a three-way mixing and diverting configuration. It features an electric actuator that operates with a two-position control signal.

• Body Size: 12 inches
• Configuration: 3-way mixing/diverting
• Type: Butterfly valve

Product Highlights

This valve actuator assembly is ideal for managing fluid control in diverse systems. It combines reliability with efficient performance, making it suitable for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve actuator assembly

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 120 VAC
• Torque: 600 in-lb
• Close-Off Pressure: 50 PSI
• Flow Coefficient: 8077 cv
• Body Material: Polyester coated cast iron
• Operating Fluid Temperature: -40 to 121 °C
• Protection Rating: NEMA 4
• IP Degree of Protection: IP56
• Heater Feature: Yes
