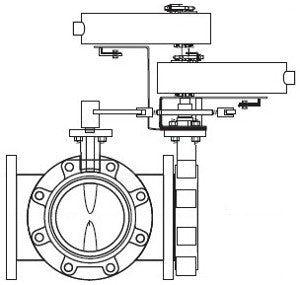

Schneider Electric VAFS-632C-556D-L-13 Valve Actuator Assembly

Product Description

Schneider Electric VAFS-632C-556D-L-13 is a valve actuator assembly designed for use in various fluid control applications. This assembly features a 3-inch body size and a 3-way mixing/diverting configuration for effective flow management. The actuator is electric with a control signal designed for a 2-position operation.

• Body Size: 3 inches
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly Valve

Product Highlights

This valve actuator assembly combines a durable design with reliable performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 461 cv
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric, Spring Return, Normally Closed
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Relative Humidity: 5-95% non-condensing
• Material Disc: Ductile Iron with Nylon 11 Coating
• Body Material: Polyester Coated Cast Iron
• Actuator Range: SmartX Actuator
