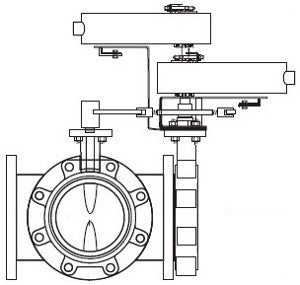

Schneider Electric VAFS-631C-556D-L-12 Valve Actuator Assembly 2-1/2 in

Product Description

Schneider Electric VAFS-631C-556D-L-12 is a valve actuator assembly designed for effective control in fluid handling systems. This unit features a two-and-a-half-inch body size and works with a three-way mixing or diverting configuration. It is ideal for applications that require precise flow regulation.

• Body Size: 2-1/2 inches
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly Valve

Product Highlights

This actuator assembly includes an electric actuator with a two-position control signal and a spring return feature. It ensures reliable operation in various environments with a NEMA rating for protection against dust and moisture.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve-Actuator Assembly

Technical Specifications

• Flow Coefficient: 282 cv
• Close-Off Pressure: 175 PSI
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 133 in-lb
• Material Disc: Ductile Iron - Nylon 11 Coated
• Auxiliary Switch: 2 SPDT
• Operating Temperature: -40 to 121 °C
• Ambient Air Temperature: -30 to 60 °C
• Relative Humidity: 5 to 95% non-condensing
• Actuator Rotation: 100 °
