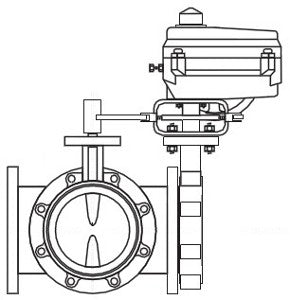

Schneider Electric VAFS-630C-F20-L-14 4 in Butterfly Valve Assembly

Product Description

Schneider Electric VAFS-630C-F20-L-14 is a four-inch butterfly valve assembly designed for effective fluid management. This valve features a three-way mixing and diverting configuration, ideal for various installations. It operates with an electric actuator that requires a twenty-four VAC power supply. Key specifications include a flow coefficient of eight hundred forty-one cv and a close-off pressure of one hundred seventy-five PSI.

• Body Size: 4 in
• Configuration: 3-Way Mixing/Diverting
• Actuator Type: Electric

Product Highlights

This valve provides reliable performance in various applications. The actuator is a non-spring return type, ensuring it fails in place during a loss of power. Designed with a nylon-coated ductile iron disc, it achieves durability against corrosion.

Product Information

Standard Information

• Body Material: Polyester coated cast iron
• Protection Rating: NEMA 4

Technical Specifications

• Flow Coefficient: 841 cv
• Close-Off Pressure: 175 PSI
• Torque: 600 in-lb
• Power Input Voltage: 24 VAC
• Temperature Range: -40 to 121 °C
• Ambient Temperature for Operation: -40 to 65.5 °C
• Control Signal: 2-Position (On/Off)
• Auxiliary Switch: 2 SPDT
