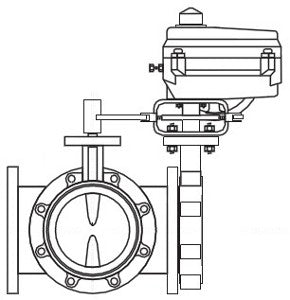

Schneider Electric VAFS-6305-F20-L-16 Butterfly Valve Assembly 6 in

Product Description

Schneider Electric VAFS-6305-F20-L-16 is a six-inch butterfly valve assembly designed for mixing and diverting applications. It features a durable ductile iron construction with a nylon 11 coating. This valve is rated for a flow coefficient of 1850 cv and a close-off pressure of 175 PSI, making it suitable for various fluid control systems.

• Body size of six inches
• Electric actuator with a torque of 600 in-lb
• Fail-in-place feature

Product Highlights

This assembly is ideal for use in HVAC and plumbing systems that require reliable control of fluid flow.

Product Information

Standard Information

• Body Style: Lug
• Connection Type: Flanged
• Disc Shape: Full

Technical Specifications

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 24 VAC
• Protection Rating: NEMA 4
• Actuator Model: BRY-S70-24-0121-H
• Auxiliary Switch: 2 SPDT
• Flow Coefficient: 1850 cv
• Close-Off Pressure: 175 PSI
