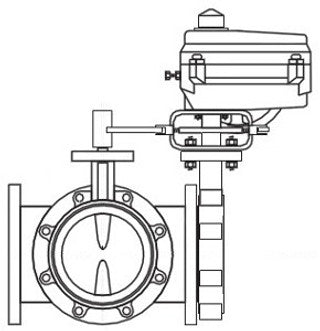

Schneider Electric VAFS-6303-F20-L-16 Valve Assembly 6 in Butterfly

Product Description

Schneider Electric VAFS-6303-F20-L-16 is a six-inch valve assembly designed for mixing and diverting applications. This is a butterfly valve constructed from durable ductile iron and features a nylon coated surface for enhanced performance. The assembly provides a flow coefficient of one thousand eight hundred fifty cv, ensuring efficient liquid handling. It operates with a two-position electric actuator that supports 24 VAC input and offers a fail-in-place mode during power loss.

• Body Size: 6 in
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly

Product Highlights

The VAFS-6303-F20-L-16 valve assembly is suitable for a variety of fluid control applications, but it is not recommended for use with steam. It requires minimal maintenance and integrates well into existing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Torque: 600 in-lb
• Close-Off Pressure: 175 PSI
• Disc Shape: Full
• Electric Actuator: BRY-S70-24-0121-H
• Flow Coefficient: 1850 cv
• Protection Rating: NEMA 4
• Auxiliary Switch: 2 SPDT
